當前位置：首頁 » 石英晶振 » AKER晶振 » C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

prevnext

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

頻率：12 MHz

尺寸：2.50mm x 2.00mm

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振,依托品牌在頻率控制領域的技術積累與車規級品質管控,展現出卓越的可靠性.AKER采用高純度石英晶體作為核心震蕩材料,經過精密的晶體切割,拋光及車規級密封封裝工藝處理,有效隔絕車載環境中的灰塵,油污,濕度(耐高溫晶振)對元件的影響,延長晶振使用壽命.生產過程中,該晶振需通過車規行業嚴苛測試:包括AEC-Q200車規認證測試(涵蓋高溫老化,溫度循環,振動沖擊等11項測試),頻率精度校準(每顆單獨校準至±10ppm內),長期穩定性測試(125℃持續運行2000小時),全面符合ISO9001質量管理體系標準及RoHS環保認證要求,不含鉛,鎘等有害物質,適配全球車載環保法規.

訂購熱線：0755-27837162

JLX-1

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

C2E-12.000-8-2050-X1-R是安基晶振推出的一款專為車載場景設計的無源晶振,核心頻率精準鎖定12.000MHz,這一頻率是車載電子模塊(如車機導航,ADAS輔助駕駛單元,車載網關)的關鍵基準時鐘頻率,能為車載信號處理,數據傳輸提供穩定時序支撐.其關鍵參數經過車載場景深度優化:8pF低負載電容可與車載芯片(如車載MCU,射頻收發器)的時鐘引腳完美匹配,無需額外調整外部電容即可快速穩定起振；頻率精度嚴格控制在±10ppm以內,在-40℃~+125℃的車規級寬溫范圍內,溫漂波動≤±3ppm/℃,可有效抵御車輛行駛中發動機高溫,冬季低溫等極端環境對頻率輸出的干擾.作為無源晶振,它具備低相位噪聲(10kHz偏移處≤-118dBc/Hz)特性,能減少車載電磁環境下的信號干擾,保障車載系統的低延遲,高可靠性運行,是汽車電子晶振穩定工作的核心頻率元件.

JLX-2

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

原廠型號 Original model ：	C2E-12.000-8-2050-X1-R	品牌 brand ：	AKER晶振
品牌 brand ：	AKER晶振	ESR（等效串聯電阻） Resistance)	200 Ohms
型號名稱 Model name：	C2E X1	溫度 Operating Temperature	-40°C ~ 125°C
Type 系列：	MHz Crystal	腳位 Termination：	4 pad
頻率 frequency ：	12 MHz	封裝類型 Package Type：	4-SMD
Frequency Stability頻率穩定度	±50ppm	高度 Package Height：	0.65mm
frequency tolerance頻率容差	±20ppm	最小包裝數 MPQ ：	3000
Load capacitance 負載電容	8pF	包裝 Packaging：	Tape and Reel
Size / Dimension 尺寸	2.50mm x 2.00mm	安裝方式 Mounting Style：	Surface Mount

JLX-3

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

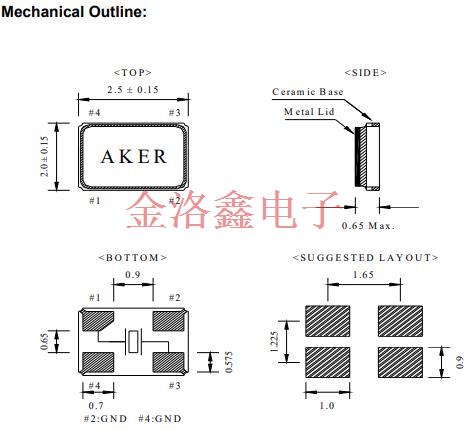

C2E尺寸圖

C2E-12.000-8-2050-X1-R,AKER無源晶振,車載晶振,2520臺產晶振

C16-26.000-8-1520-R	AKER晶振	C16	MHz Crystal	26 MHz	±20ppm	±15ppm	8pF	120 Ohms
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF	25 Ohms
C5S-8.000-18-3030-R	AKER晶振	C5S	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF	150 Ohms
CAA-4.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	4 MHz	±50ppm	±30ppm	18pF	120 Ohms
CAA-11.0592-18-3050-R	AKER晶振	CAA	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	18pF	50 Ohms
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	60 Ohms
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF	80 Ohms
C3E-24.000-9-1010-R	AKER晶振	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	9pF	50 Ohms
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF	120 Ohms
C3E-25.000-20-1015-X-R	AKER晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	20pF	40 Ohms
C3E-24.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF	50 Ohms
C3E-16.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	9pF	60 Ohms
C2E-12.000-18-1020-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C3E-8.000-20-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	20pF	150 Ohms
C3E-8.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-8-1015-R	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±15ppm	8pF	500 Ohms
C3E-12.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	80 Ohms
C3E-16.000-10-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±30ppm	10pF	60 Ohms
C16-32.000-8-1515-X-R	AKER晶振	C16	MHz Crystal	32 MHz	±15ppm	±15ppm	8pF	100 Ohms
C3E-20.000-8-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	8pF	50 Ohms
C2E-12.000-18-1020-X-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C5S-12.000-18-1020-R	AKER晶振	C5S	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	35 Ohms
C3E-8.000-18-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-12-1020-M	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±20ppm	12pF	500 Ohms
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	200 Ohms
C3E-16.000-10-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	10 MHz	±50ppm	±20ppm	10pF	60 Ohms
C3E-30.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	30 MHz	±50ppm	±20ppm	8pF	40 Ohms
C7S-12.000-12-3030-X-R	AKER晶振	C7S	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	35 Ohms
C7S-8.000-18-1020-R	安基晶振	C7S	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	40 Ohms
C7S-8.000-18-1030-X-R	安基晶振	C7S	MHz Crystal	8 MHz	±30ppm	±10ppm	18pF	70 Ohms
CA4-16.000-18-3050-R	安基晶振	CA4	MHz Crystal	16 MHz	±50ppm	±30ppm	18pF	40 Ohms
CA4-8.000-16-3050-R	安基晶振	CA4	MHz Crystal	8 MHz	±50ppm	±30ppm	16pF	60 Ohms
C3E-8.000-10-1020-M	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	10pF	500 Ohms
C16-96.000-8-1520-X2-R	安基晶振	-	MHz Crystal	96 MHz	±15ppm	±20ppm	8pF	-
C1E-76.800-10-1012-X-M	安基晶振	C1E	MHz Crystal	76.8 MHz	±10ppm	±10ppm	10pF	60 Ohms
C1E-80.000-10-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	10pF	40 Ohms
C1E-76.800-8-1012-X-M	安基晶振	C1E	MHz Crystal	46.8 MHz	±10ppm	±10ppm	8pF	60 Ohms
C1E-80.000-8-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	8pF	10 Ohms
C3E-24.576-12-3030-X-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-30.000-12-1020-X-R	安基晶振	C3E	MHz Crystal	30 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-12-1015-R	安基晶振	C3E	MHz Crystal	12 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-25.000-8-1015-X-R	安基晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF	100 Ohms
C3E-26.000-10-1015-X-R3	安基晶振	C3E	MHz Crystal	26 MHz	±15ppm	±10ppm	10pF	100 Ohms
C16-26.000-8-1010-R	安基晶振	C16	MHz Crystal	26 MHz	±10ppm	±10ppm	8pF	150 Ohms
C3E-16.000-8-2050-X1-R	安基晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±20ppm	8pF	60 Ohms
C3E-8.000-12-1020-R	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	12pF	500 Ohms
C2E-12.000-10-2050-X1-R	安基晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	10pF	200 Ohms
C1E-96.000-8-1216-X2-R	安基晶振	C1E X2	MHz Crystal	96 MHz	±16ppm	±12ppm	8pF	20 Ohms
C3E-12.000-12-3030-X-R	安基晶振	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-27.120-12-1010-R	安基晶振	C3E	MHz Crystal	27.12 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-24.576-12-1010-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-16.000-12-1015-R	安基晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-13.560-12-1530-X-R	安基晶振	C3E	MHz Crystal	13.56 MHz	±30ppm	±15ppm	12pF	100 Ohms
C2E-16.000-10-1010-R	安基晶振	C2E	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF	90 Ohms
C1E-24.000-10-1015-M	安基晶振	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF	100 Ohms
C2E-25.000-10-3030-X-M	安基晶振	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF	100 Ohms
C2E-48.000-10-1020-X-R	安基晶振	C2E	MHz Crystal	48 MHz	±20ppm	±10ppm	10pF	50 Ohms
C3E-20.000-10-3050-X1-R	安基晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	10pF	50 Ohms
C1E-96.000-9.9-1216-X2-R	安基晶振	C1E	MHz Crystal	96 MHz	±16ppm	±12ppm	9.9pF	60 Ohms
