NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷貼片晶振,6G低成本晶振
頻率：12.288MHZ

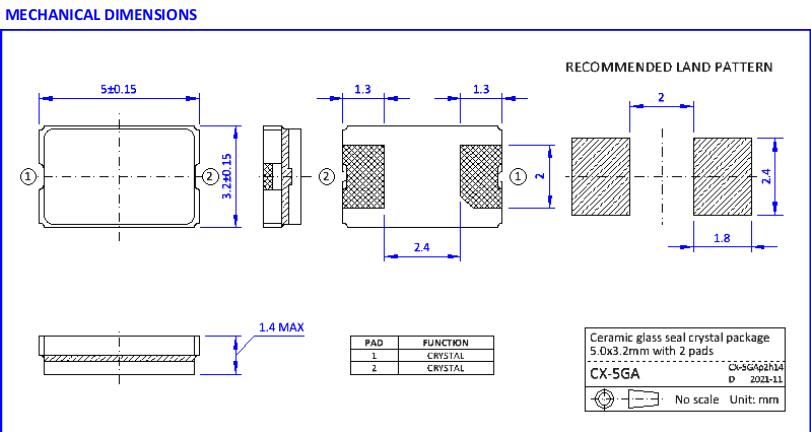

尺寸：5.0×3.2×1.2mm
NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷貼片晶振,6G低成本晶振,NKG晶振,S5GA進口晶振,無源晶振,S5GA12.2880F18E2Z-EXT晶振,石英晶體諧振器,陶瓷晶振,5032mm晶振,二腳貼片晶振,SMD晶振,頻率12.288MHz,負載18pF,頻率容差20ppm,工作溫度-20~70°C,低成本晶振,無鉛環保晶振,小體積晶振,電腦外圍設備晶振,辦公自動化晶振,智能電視機晶振,音頻系統晶振.
NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷貼片晶振,6G低成本晶振,NKG晶振,S5GA進口晶振,無源晶振,S5GA12.2880F18E2Z-EXT晶振,石英晶體諧振器,陶瓷晶振,5032mm晶振,二腳貼片晶振,SMD晶振,頻率12.288MHz,負載18pF,頻率容差20ppm,工作溫度-20~70°C,低成本晶振,無鉛環保晶振,小體積晶振,電腦外圍設備晶振,辦公自動化晶振,智能電視機晶振,音頻系統晶振.
NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷貼片晶振,6G低成本晶振特點
●小包裝尺寸5.0 x 3.2 x 1.2mm與2個墊
●普通接縫密封封裝的低成本替代品
●符合RoHS豁免

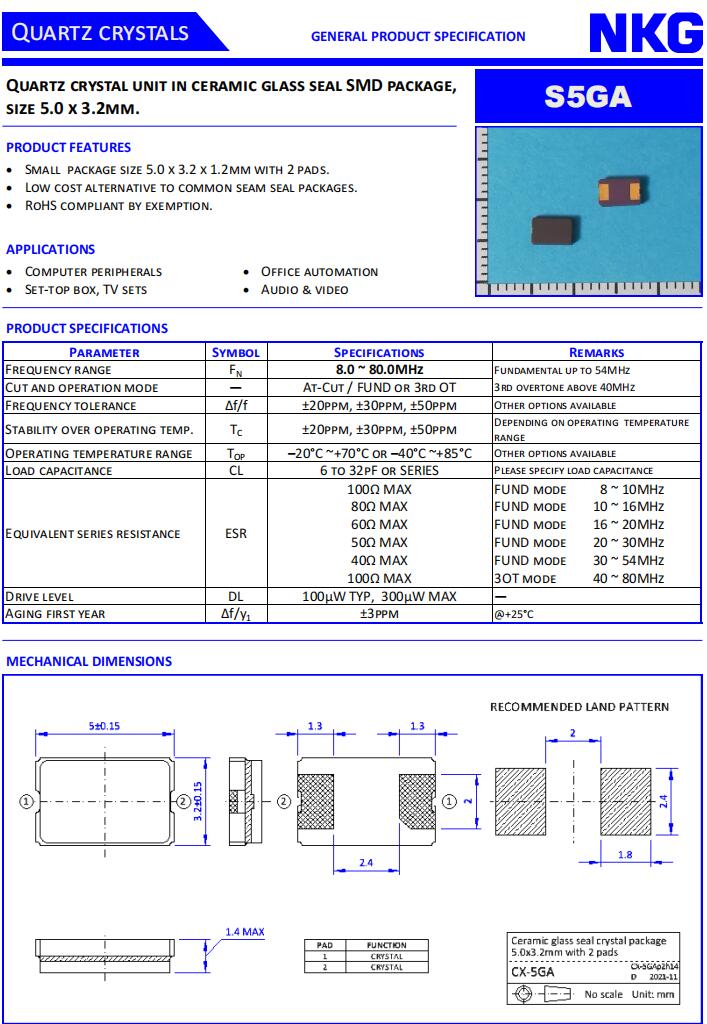

NKG晶振,S5GA12.2880F18E2Z-EXT,陶瓷貼片晶振,6G低成本晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
12.288MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±25ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
80Ω MAX
FUND mode 10 ~ 16MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
